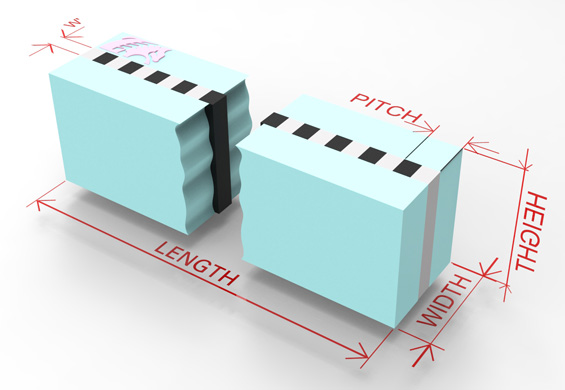

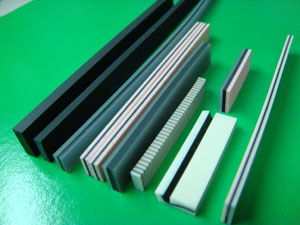

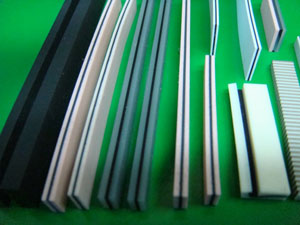

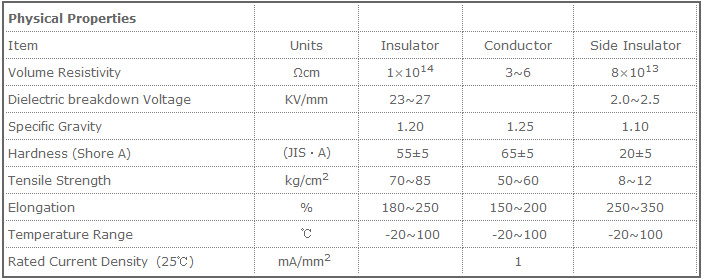

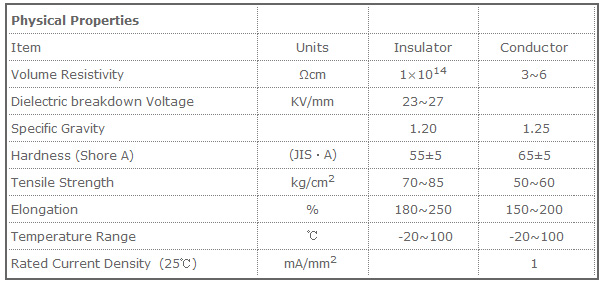

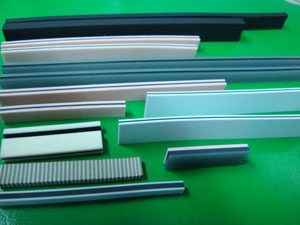

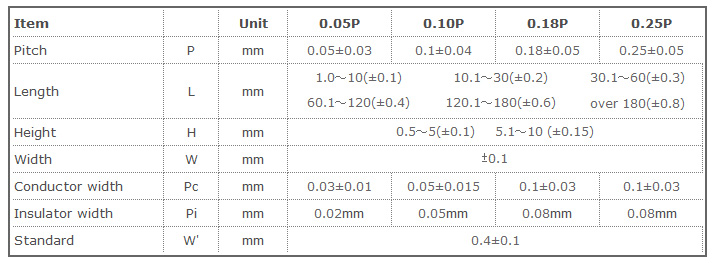

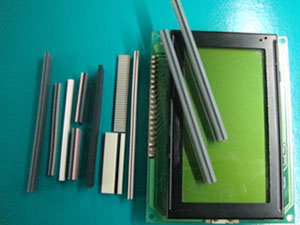

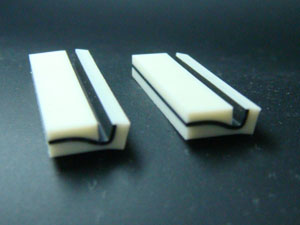

* Length : LCD size × (1±0.01)
* Height : The distance between LCD and PCB × (1+x)
| L | LI | LS | LG | |
|---|---|---|---|---|
| X | 0.01-0.10 | 0.07-0.10 | 0.10-0.15 | 0.10-0.15 |
* Width : The gap of housing × 0.95
* W' : Width × 0.25
* Pitch : Typical Application

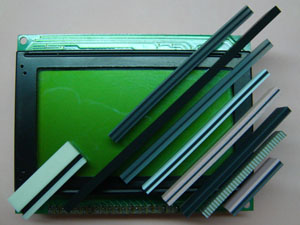

* Standard LCD : 0.18-0.25 Pitch
* Dot matrix LCD : 0.05-0.1 Pitch
